Uniaxial geogrid

Uniaxial Plastic Geogrid
Material：	plastic
Length：	50m, 100m or as request
Color：	black
Payment Terms：	L/C or T/T
Min. Order：	20' GP or as request
Productivity：	600,000 sqm/ week
Delivery Time：	15-20 days after receiving the deposit
Packaging：	center as roll, outside with PP bag or as request

Uniaxial plastic geogrid is made of high molecular polymer after extruded and laminated and punched into regular mesh

before longitudinal stretching. This process makes high molecule in direct line state in oblong oval net structure with

uniform distribution and high node intensity. This structure has rather high tensile strength and stretch modulus,

especially our products of this kind have superior world class tensile strength and stretch modulus with extensibility

between 2% and 5%.

1. High tensile strength

2. Low creep deformation

3. Improving bearing capacity of retaining wall or dam

4. Extending the projects life

5. Reducing floor area

6. Shortening construction period, reducing cost and maintaining expense

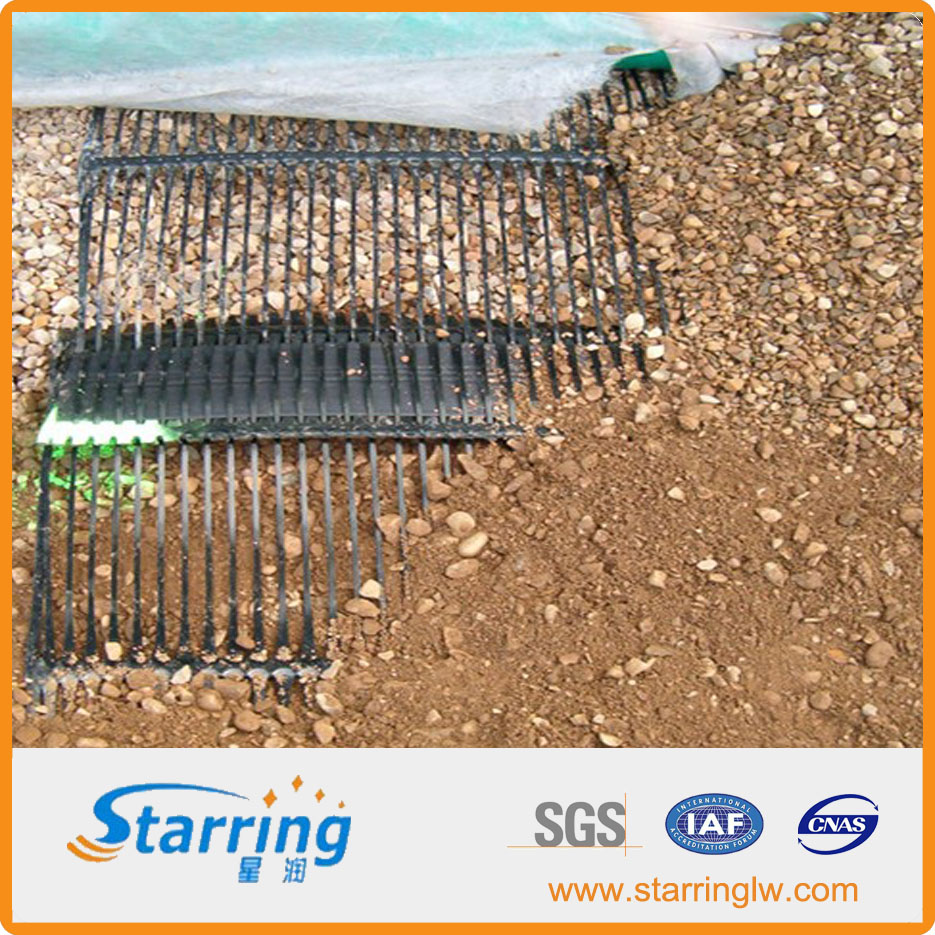

1. It is mainly used in retaining wall, bridge abutment, steep slope project and so on.

2. Enhancement the dykes and dams

3. Used in subgrade enhancement constructions such as highways, municipal, roads railways, runways etc.

Project	TGDG25	TGDG35	TGDG50	TGDG80		TGDG110	TGDG150	TGDG170	TGDG200
Width , m	1.0 2.0 2.5 3.0
Extends the rice streth to submit every time the strength, KN/m≥	25	35	50	80		110	150	170	200
The elongation ratio, %≤	10
2%Time elongation ratio drawing force, KN/m ≥	7	10	12		20	32	48	64	85
5%Time elongation ratio drawing force, KN/m ≥	14	20	28		48	64	90	120	145
