Home > Geosynthetics > Composite Drain
|
- Description
- Features
- Application
- Technical Parameters

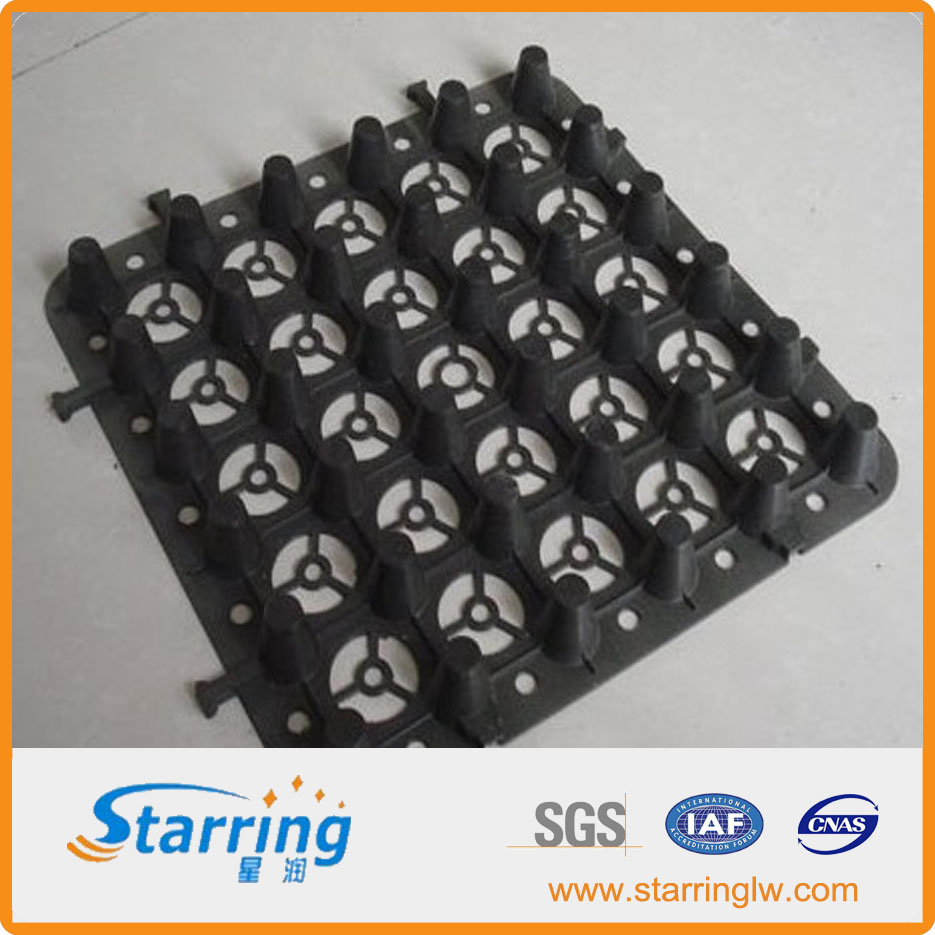

The plastic storage and drainage plates are made from HDPE(high-density polyethylene), using high pressure to inject plastic to form hole-lump-shaped shell, with stereo space and support level; in the top of the shell, covering with non-woven as filtering level for water percolation, water storage and water drainage. The plastic storage and drainage plate also named water drainage protection plate or water filtration plate or plastic interlayer board.
1.Water Drainage: Drainage plate can be used in combination with non-woven to get rid of the rain immediately and effectively relieve the roof’s pressure caused by the instantaneous rainfall.
2.Water Drainage :Absorb and store redundant moisture leaking from the planting layer and supply needed moisture for the plant when the soil lacking of water to improve plant’s drought-resistance ability.
3.Ventilation: Special design helps the plant layer to have good air-ventilation ability at the bottom, improves ventilating situation and ensures the oxygen demand for root.
4.Heat Insulation: The storage place for the drainage plate is at the bottom of the plant, helping the plant to stop from the sun direct illuminating and form a cool space, which can absorb heat from structure layer to form air troposphere.
5.Safety: Plastic storage and drainage plate‘s light weight will not enhance load for roof structure.
6.Environment: it is 100% recycling, won't cause secondary pollution to the environment.
7.Bearing Performance :Bearing strength for storage-drainage plate can reach 80 ton per square as the highest, suitable for all kinds of landscape on the top.
Garden engineering : Garage roof greening,Roofing Garden , football field.
Municipal Engineering: Road embankment and subway tunnel
Building Engineering: Building foundation upper or below, Roofing seepage control
Products Name: |
HDPE Storage Drainage Board |
Item No: |
T Series |
Size: |
333*333*20mm,333*333*25mm,333*333*30mm |
Material: |
HDPE(high-density polyethylene) |
Thickness: |
1.0mm----1.5mm |
Whole thickness: |
25mm----30mm |
Tensile loading: |
>400kpa --- >1000kpa |
Drain capacity: |
25----30cm³/s |
Storing capacity: |
2.6----4.0l/m² |
