HDPE Geomembrane
Material：  HDPE
Length：  50m-100m per roll
Color：  Black as usual
Payment Terms：  L/C;T/T
Min. Order：  10,000 square meters
Productivity：  1,000,000 square meters per week
Delivery Time：  Within 15 days after receiving your deposit
Packaging：  Woven bags or as you require
  • Description
  • Features
  • Application
  • Technical Parameters

HDPE Geomembrane

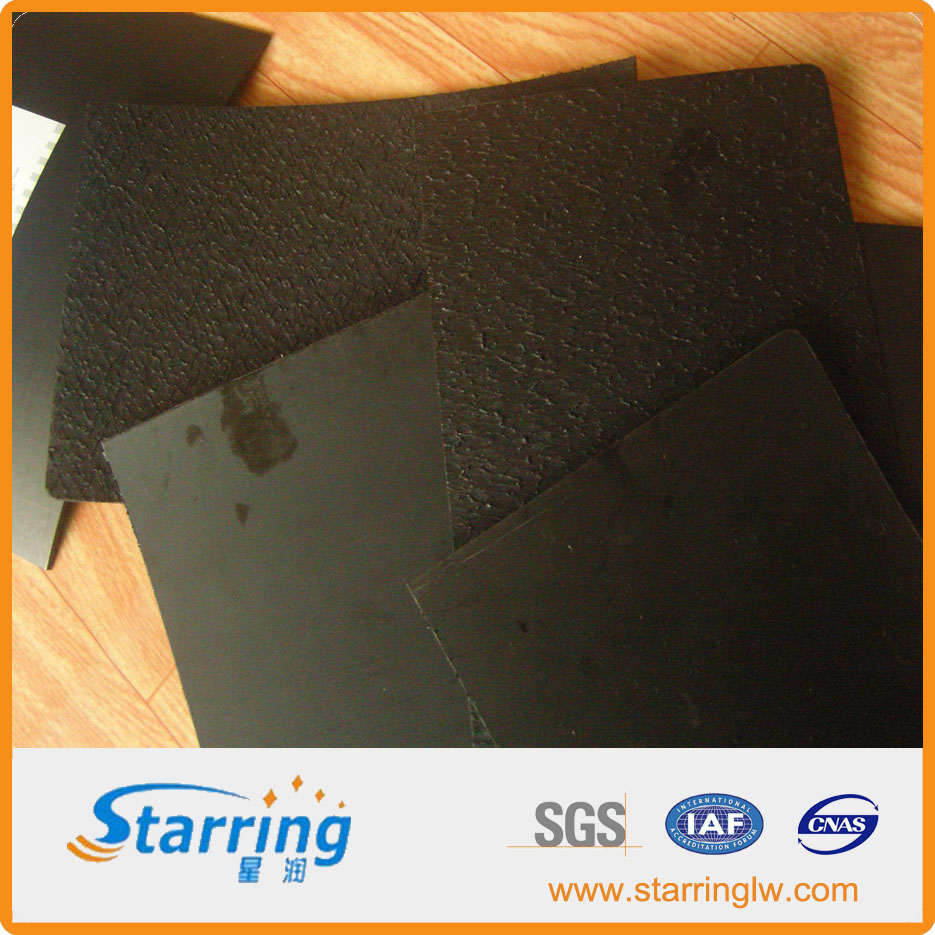

  HDPE geomembrane is a waterproof membrane made by high density polyethylene (HDPE).HDPE geomembrane has better mechanical performance then LDPE geomembrane and LLDPE geomembrane such as tensile strength,yield strength and so on.

1.Low Permeability

   HDPE lining systems are secure because leachate does not penetrate them;

methane gas will not escape from the HDPE geomembrane cover system; and rainwater

will not infiltrate an HDPE cap.

2.Chemical Resistance

   HDPE Geomembrane, resistant to a wide range of chemicals, is not threatened by typical

solid or hazardous waste leachates. It is also suitable for sludge and secondary

containment around chemical storage facilities.

3.Ultraviolet Resistance

   HDPE Geomembrane's resistance to UV exposure is further enhanced by the addition of

carbon black. Additionally, with the absence of plasticizers, volatilization is not a problem.



 Application

Agricultural Applications                                         Tank Linings

Municipal Applications                                        Industrial Applications

Landfills & Canals                                              Liners for Golf Course

Irrigation Ponds, Reservoirs & Dithches                       Lake liners & Pond Liners

Enviromental Containment                                 Secondary Containment

Pollution Containment                                     Animal Waste Containment

Wastewater Lagoon Liners                                      Liquid Containment

Properties Test Method Value:


ASTM D5199

 0.75mm 1.00mm 1.25mm 1.5mm 2.00mm 2.5mm 3.00mm
Density(Min.)

ASTM

D1505

 0.940g/ml
*Yield strength KN/m   11 15 18 22 29 37 44
*Break strength KN/m   20 27 33 40 53 67 80
*Yield elongation   12%
*Break elongation   700%
Tear resistance N ASTM D1004 93 125 156 187 249 311 374
Puncture resistance N ASTM D4833 240 320 400 480 640 800 960
Stress crack resistance /h ASTM D5397 300
Carbon black content ASTM D1603 2.0-3.0%
Carbon black dispersion ASTM D5596 1 or 2
(OIT) Oxidative induction time ASTM D3895 100
Low temperature impact brittle property at -70°C   Pass
Dimensional stability /
±2
